Machining bronze is a specialized process that requires a deep understanding of the material’s properties and the appropriate techniques to achieve precision and efficiency. Bronze, an alloy primarily composed of copper and tin, is renowned for its strength, durability, and corrosion resistance, making it a preferred choice in various industries, including marine, aerospace, and manufacturing.
Understanding Bronze and Its Alloys
Bronze’s composition can vary significantly, leading to different alloys with unique properties. For instance, aluminum bronze contains aluminum, enhancing its strength and corrosion resistance, making it suitable for marine applications. Phosphor bronze includes phosphorus, improving its wear resistance and stiffness, ideal for precision components like gears and springs. Silicon bronze, with added silicon, offers excellent corrosion resistance and is often used in pump and valve components. Each alloy presents distinct challenges and advantages in machining, necessitating tailored approaches to achieve optimal results.
CNC Machining Techniques for Bronze
Computer Numerical Control (CNC) machining has revolutionized the manufacturing of bronze components, offering unparalleled precision and repeatability. Key CNC techniques employed in machining bronze include:

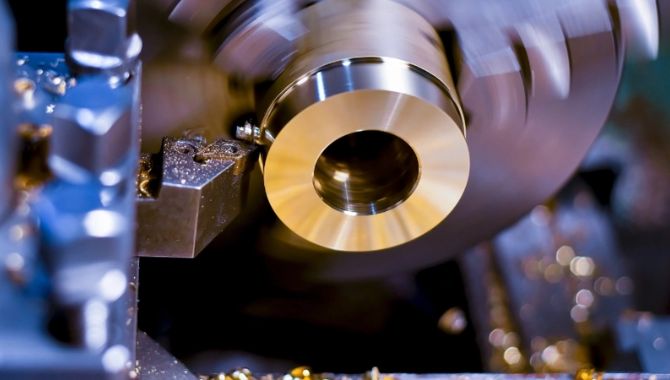

Turning: This process involves rotating the bronze workpiece while a cutting tool moves linearly to remove material, ideal for creating cylindrical parts such as shafts, pins, or bushings. Turning can achieve tight tolerances and a smooth finish, crucial for components requiring precise radial symmetry.
Milling: Utilizing rotary cutters to remove material, milling is versatile and can produce various features, including slots, threads, and complex contours. It’s particularly useful for parts that require intricate details or multiple cuts.
Drilling: Employed to create round holes in bronze, drilling is often combined with other machining processes. The softness of bronze allows for faster drilling speeds compared to harder metals, but care must be taken to prevent overheating and ensure clean hole walls.
Boring: This process enlarges pre-drilled holes or corrects their alignment, achieving precise hole sizes and smooth internal surfaces, crucial for parts that must house bearings or other fittings.
Additional Challenges in Machining Bronze
Machining bronze requires careful planning and the right techniques to handle its unique properties effectively. In addition to the challenges mentioned earlier, here are several other critical aspects machinists must consider:
1. Material Variability
Bronze alloys come in different compositions, each exhibiting unique characteristics. Variations in hardness, strength, and ductility affect machining performance. For example, aluminum bronze is harder and more abrasive than phosphor bronze, requiring adjustments in cutting speeds and tool selection. Machinists must test and calibrate settings based on the specific alloy to ensure smooth machining processes.
2. Work Hardening
Bronze can harden during machining, especially under high pressure or inadequate lubrication. This work hardening leads to increased tool wear and makes subsequent machining steps more difficult. To address this, machinists often use sharp tools, lighter cuts, and steady feed rates to minimize stress and maintain material integrity.
3. Burr Formation
Bronze tends to produce burrs—small, unwanted projections of material—during cutting and drilling. Burrs can compromise dimensional accuracy and require additional finishing operations such as deburring or grinding. Using specialized cutting tools and optimizing machining parameters can help reduce burr formation.
4. Surface Finish Requirements
Achieving a smooth surface finish is critical for components like bronze bushings and bearings that require precise fits and low friction. Poor surface finishes can lead to performance issues, especially in high-wear applications. Fine-grain tools and optimized cutting speeds are essential to create polished surfaces without defects.
5. Tool Deflection and Vibration
The cutting forces exerted on bronze during machining can lead to tool deflection and vibration, especially in thin or delicate parts. This affects accuracy and may result in uneven cuts. Using rigid tool holders, reducing overhang, and supporting the workpiece properly help minimize these effects.
6. Lubrication and Cooling Requirements
While bronze generally machines well, improper lubrication can lead to overheating, which affects tolerances and damages the tool. Applying appropriate coolants and lubricants prevents heat buildup and flushes away chips, ensuring better surface quality. Some machinists prefer using oil-based coolants for better lubrication and heat control.
7. Tool Selection and Coating
Bronze’s abrasive properties make tool selection crucial. Carbide-tipped tools are commonly used, but in high-volume production, diamond-coated tools offer longer life and reduced downtime. Machinists must also consider tool geometry, such as sharp cutting edges and positive rake angles, to reduce cutting forces and improve chip flow.
8. Chip Control in Automated Systems
In automated CNC machining bronze operations, chip buildup can lead to machine jams or tool breakage. Advanced chip evacuation systems, such as through-spindle coolant delivery or air blasts, are essential to clear chips effectively. Using programmable CNC machines ensures consistent chip management, even during complex machining operations.
9. Small Hole Drilling Challenges
Drilling small, precise holes in bronze can be problematic due to chip clogging and deflection. High-speed drills, peck drilling cycles, and special coatings, such as titanium nitride, enhance performance. Additionally, reaming is often used to refine hole dimensions and improve surface finishes.
10. Fixture Design and Clamping
Machining bronze parts often requires specialized fixtures to secure the workpiece. Inadequate clamping may lead to vibrations, inaccuracies, and damaged parts. Custom fixtures and soft jaws can accommodate complex geometries, ensuring stability during machining.
11. Dimensional Stability
Thermal expansion in bronze can cause dimensional changes during machining, affecting tolerances. This is especially critical for parts used in high-precision applications like aerospace or marine environments. Machinists often preheat workpieces or machine in controlled environments to minimize thermal distortion.
12. Wear Resistance and Polishing
Certain applications, such as machining bronze bushings or bearings, require additional polishing and grinding to ensure smooth operation. Post-machining processes like lapping and honing further refine the finish and enhance performance. Careful selection of abrasives and polishing compounds is necessary to avoid damaging the surface.
13. Threading Difficulties
Threading bronze can be challenging, especially for fine threads. Machinists often use taps and dies designed specifically for bronze alloys to achieve accurate and durable threads. Thread rolling processes may also be employed to improve strength and eliminate burrs.
14. Balancing Cost and Efficiency
Bronze is relatively expensive compared to other metals like aluminum and brass. Maximizing material usage and minimizing scrap through optimized programming and nesting strategies is crucial for cost-effective machining. CNC machining bronze offers precise control, reducing waste and improving efficiency.
15. Machining Thin-Walled Parts
Thin-walled bronze components are prone to deformation during machining due to their low stiffness. To avoid this issue, machinists use specialized fixtures, lighter cuts, and multi-pass finishing techniques to maintain dimensional accuracy.
16. Post-Machining Treatments
Bronze parts often require post-machining treatments such as plating, polishing, or anodizing to enhance corrosion resistance and improve aesthetics. For example, components used in die casting molds or injection mold China industries may undergo additional finishing to meet exacting standards.
17. Compliance with Industry Standards
Machining bronze parts for aerospace, marine, and medical applications requires adherence to strict industry standards and tolerances. Regular inspections, quality checks, and certifications ensure compliance and maintain high performance in demanding environments.
18. Customization Challenges
Many industries require custom bronze parts, such as machined bushings or bearings, with unique specifications. Customization demands advanced CNC machining techniques, accurate programming, and thorough testing to meet customer requirements.
19. Recycling and Sustainability
Although bronze is recyclable, maintaining quality during reuse requires careful material handling. CNC machining processes should minimize waste and allow for efficient recycling, contributing to sustainable manufacturing practices.
20. Integration with Other Technologies
Modern machining processes often integrate with other technologies, such as die casting molds and overmolding, to enhance part performance. Plastic injection molding companies, for instance, combine bronze inserts with plastic components to create hybrid parts for specific applications.
Machining Bronze vs. Brass
Bronze and brass, both copper alloys, differ significantly in their machining characteristics. Brass, composed of copper and zinc, is generally softer and offers excellent machinability, allowing for higher cutting speeds and longer tool life. It’s often used for decorative and low-stress applications. In contrast, bronze’s higher hardness and strength make it suitable for high-stress components like bearings and bushings but require more careful machining to manage tool wear and achieve desired surface finishes.
Machining Bronze Bushings
Bronze bushings are integral components in machinery, providing low-friction interfaces between moving parts. Machining these bushings demands precision to ensure proper fit and function. Processes such as turning and boring are commonly employed to achieve the required dimensions and surface finishes. Selecting the appropriate bronze alloy, like SAE 660 (C93200) bearing bronze, known for its excellent wear resistance and self-lubricating properties, is crucial for the bushing’s performance and longevity.
Best Practices for Machining Bronze
To achieve optimal results in machining bronze, consider the following best practices:
- Tool Selection: Utilize cutting tools made from materials like carbide or diamond coatings to withstand the abrasive nature of bronze and reduce tool wear.
- Cutting Parameters: Optimize cutting speeds and feeds to balance material removal rates with tool life. Slower speeds may be necessary to manage heat generation and achieve superior surface finishes.
- Cooling and Lubrication: Implement appropriate cooling and lubrication strategies to dissipate heat, reduce friction, and prevent workpiece distortion. This is particularly important in processes like drilling and boring, where heat buildup can affect dimensional accuracy.
- Chip Management: Employ chip breakers and ensure effective chip evacuation to prevent re-cutting and surface damage, maintaining process stability and workpiece quality.
Applications of Machined Bronze Components
Machined bronze components are prevalent in various industries due to their advantageous properties:
- Marine Industry: Bronze’s excellent corrosion resistance makes it ideal for marine hardware, including propellers, rudders, and underwater bearings.
- Aerospace: In aerospace applications, bronze components are valued for their strength and reliability, often used in landing gear and other critical systems.
Industrial Machinery and Equipment
Machined bronze components play a crucial role in industrial machinery. Bronze bushings, bearings, and gears are widely used due to their self-lubricating properties, wear resistance, and ability to operate under high loads. These qualities make bronze ideal for heavy machinery, hydraulic systems, and pumps. Its durability reduces maintenance requirements, leading to lower operational costs.
Bronze bushings are specifically designed to handle rotational and sliding motions, providing smooth performance in high-friction environments. Industries such as automotive, construction, and manufacturing rely heavily on bronze bushings to ensure seamless operations. Moreover, CNC machining bronze allows for creating intricate designs and precise tolerances required in modern equipment.
Art and Sculpture
Bronze has been a favored material in art and sculpture for centuries. Its ability to capture fine details and develop a unique patina over time makes it highly desirable for artists. Modern machining techniques, including CNC machining bronze, allow artists to experiment with new designs and forms while maintaining the strength and elegance associated with traditional bronze works.
Electronics and Electrical Components
Bronze’s excellent conductivity makes it an ideal choice for electrical connectors, terminals, and switches. Its resistance to corrosion ensures long-lasting performance in harsh environments, including outdoor installations and marine applications. CNC machining bronze provides the precision required for creating small, intricate components used in electronics manufacturing.
Plastic Mold and Injection Mold Applications
In industries like plastic mold and injection mold China, bronze components are often incorporated to improve performance and longevity. For instance, bronze inserts or sleeves are used in mold factories in China to provide wear resistance and thermal stability. This reduces downtime and ensures consistent production quality. Overmolding techniques further enhance the integration of bronze parts with other materials, offering versatile solutions for manufacturers.
Comparing Machining Bronze vs. Brass
The debate between machining bronze vs. brass often arises when selecting materials for specific applications. Brass, being softer and easier to machine, is often chosen for decorative items, plumbing fixtures, and musical instruments. It offers excellent machinability, but its strength and wear resistance are lower than bronze.
On the other hand, machining bronze is preferred for high-stress applications, such as bearings, bushings, and gears, where durability and corrosion resistance are critical. While bronze is harder to machine, CNC machining bronze techniques help overcome these challenges, ensuring precise and efficient production.
When deciding between machining bronze vs. brass, engineers and designers must evaluate factors such as load capacity, operating environment, and desired surface finish. In scenarios requiring superior strength and longevity, bronze remains the material of choice.
Die Casting and Mold Factories in China
Die casting China has become a major industry for producing high-volume metal components, including those made from bronze alloys. The process involves forcing molten metal into molds under high pressure, creating parts with complex shapes and fine details. Bronze parts manufactured through die casting are widely used in automotive, aerospace, and industrial applications.
Mold factories in China often integrate CNC machining processes to refine the dimensions and features of die-cast parts. This combination of die casting and machining bronze ensures high precision and cost-effective production, meeting the stringent demands of global markets.
The Role of Overmolding in Bronze Components
Overmolding is another advanced manufacturing technique used in conjunction with bronze machining. It involves molding a secondary material over a bronze component, enhancing its performance and appearance. Overmolding is particularly useful in creating hybrid parts that combine the strength of bronze with the flexibility of plastics or rubber.
Plastic injection molding companies frequently employ this technique to produce components for automotive, medical, and consumer electronics industries. Overmolding reduces assembly time, improves durability, and offers design flexibility.
Machining Bronze Bushings: Challenges and Solutions
Machining bronze bushings requires specialized tools and techniques to achieve the desired precision and performance. Bronze bushings are often used in automotive suspensions, agricultural equipment, and industrial machinery, where they act as bearings to reduce friction and wear.
Challenges include maintaining tight tolerances, ensuring smooth internal surfaces, and controlling thermal expansion. CNC machining bronze has made it easier to produce these components with high accuracy. Machinists use carbide tools, coolants, and advanced software to achieve consistent results.
Additionally, bronze bushings can be customized through CNC machining to include lubrication grooves, flanges, or keyways, enhancing their functionality for specific applications. As industries continue to demand higher efficiency, machining bronze bushings remains a vital process in modern manufacturing.
Future Trends in Machining Bronze
The evolution of machining techniques and tools has transformed how bronze components are manufactured. Innovations like 5-axis CNC machining allow for creating complex geometries with minimal manual intervention. This reduces production time and improves consistency.
Automation and robotics are also becoming integral to machining bronze, enabling high-volume production without compromising quality. These advancements benefit industries that rely on precision components, such as aerospace, automotive, and electronics.
Environmental Impact and Sustainability
Bronze is a recyclable material, making it an environmentally friendly choice for many industries. Scrap bronze can be melted and reused without losing its properties, reducing waste and promoting sustainability. CNC machining bronze processes have also become more eco-friendly, with advanced lubrication systems and energy-efficient equipment minimizing environmental impact.
Plastic mold factories and die casting China facilities are adopting sustainable practices to reduce emissions and conserve resources. This shift towards greener manufacturing aligns with global efforts to combat climate change and preserve natural resources.
Conclusion
Machining bronze is a highly versatile and essential process in modern manufacturing. Its ability to produce durable, corrosion-resistant components makes it invaluable in industries ranging from aerospace and marine to electronics and sculpture. With advancements in CNC machining bronze, manufacturers can achieve high precision and efficiency, overcoming traditional challenges associated with this material.
When comparing machining bronze vs. brass, it’s clear that bronze excels in high-strength and high-wear applications, while brass remains ideal for decorative and low-stress uses. Bronze bushings, in particular, exemplify the material’s practicality in reducing friction and extending machinery life.
Furthermore, integration with other technologies, such as die casting China, injection mold China, and overmolding, continues to expand the possibilities for bronze applications. As industries embrace automation and sustainability, machining bronze is poised to remain a cornerstone of modern manufacturing, offering reliability, precision, and versatility.
